Ellis et al. Multifocal neoplasms in kidney allografts

Journal of Kidney Cancer and VHL 2016; 3(2):14–22

DOI: http://dx.doi.org/10.15586/jkcvhl.2016.53

Case Report

Multifocal Primary Neoplasms in Kidney Allografts: Evaluation of Two Cases

Robert J. Ellis1, Keng Lim Ng1,2,3, Hemamali Samaratunga4,
Sharon J. Del Vecchio1, Simon T. Wood1,2, Glenda C Gobe1

1Centre for Kidney Disease Research, School of Medicine, University of Queensland, Brisbane,
Australia; 2Department of Urology, Princess Alexandra Hospital, Brisbane, Australia;
3Department of Surgery, University Malaya, Kuala Lumpur, Malaysia;
4Aquesta Pathology, Brisbane, Australia


Renal cell carcinoma (RCC) is the fifth most common malignancy in kidney transplant recipients, with increased risk arising due to immunosuppression. De novo RCC occurrence in kidney allografts is much less common when compared with the native kidneys. Multifocal RCC in allograft kidneys is rarely described. In this report, we discuss two cases of de novo multifocal renal neoplasms in allograft kidneys. Case 1 had three distinct neoplastic lesions of >5 mm, and case 2 had four. Using the World Health Organization 2016 classification of adult renal tumours, case 1 had one clear-cell (cc) RCC (grade 3) and two papillary adenomas; all confined to the kidney. Case 2 had a nodular lesion classified as ccRCC (grade 4) with focal rhabdoid differentiation and some infiltration of renal sinus fat; a cc tubulopapillary RCC; a multilocular cystic renal neoplasm of low malignant potential; and a mucinous tubular and spindle cell carcinoma; the last three all confined to the kidney. This is the first report of mucinous tubular and spindle cell carcinoma in a kidney allograft. When considering multifocal RCC with discordant histology, it is likely that these represent independent tumourigenic events.

Keywords: multifocal; renal allograft; renal cell carcinoma; renal neoplasm

Received: 17 April 2016; Accepted after revision: 20 May 2016; Published: 13 June 2016.

Author for correspondence: Glenda C. Gobe, MSc, PhD, Centre for Kidney Disease Research, UQ School of Medicine, Lvl 5 Translational Research Institute, 33 Kent St, Woolloongabba, Brisbane, QLD 4102, Australia. Email: g.gobe@uq.edu.au

How to cite: Ellis RJ, Ng KL, Samaratunga H, Del Vecchio SJ, Wood ST, Gobe GC. Multifocal primary neoplasms in kidney allografts: evaluation of two cases. J Kidney Cancer VHL 2016;3(2):14–22. Doi: http://dx.doi.org/10.15586/jkcvhl.2016.53

Copyright: The Authors.

License: This open access article is licensed under Creative Commons Attribution 4.0 International (CC BY 4.0). http://creativecommons.org/licenses/by/4.0


Transplant recipients are at a substantially increased risk of developing malignancy due to immunosuppression regimens necessary to maintain graft viability. This may be due to decreased tumour antigen surveillance and/or increased risk of oncogenic infections (e.g. Epstein-Barr virus) (1). Renal cell carcinoma (RCC) is the fifth most common malignancy in kidney transplant recipients, and there is an estimated 15-fold increased risk when compared with the general population (2). The majority of these cancers arise in native kidneys, where end-stage or acquired cystic parenchymal changes often compound cancer risk, in conjunction with immunosuppression. Malignancies arising in allografts are substantially less common.

Reports of multifocal RCC in allograft kidneys are sparse although multifocal RCC has been reported in 5–25% of all sporadic RCC cases (3). Synchronous multifocal RCC is a common finding in association with many hereditary conditions (e.g. von Hippel-Lindau [VHL] disease and Birt-Hogg-Dubé syndrome); however, outside these conditions, there is a conflicting evidence as to exact pathogenic mechanisms, namely, whether tumours arise independently or as a result of intrarenal metastasis. When considering multifocal RCC with discordant histology, it is likely that these represent independent tumorigenic events (4). Although concomitant tumours have been reported following kidney transplantation, they are generally spatiotemporally demarcated (5). This report details two cases of multifocal de novo RCC arising in kidney allografts, with particular focus on the pathological findings. In both cases, there were multiple co-existing renal neoplasms with variable histological features within the graft kidney.

Patients and methods

Ethics approval

Relevant approvals were granted by institutional ethics review boards. Written informed consent was obtained prior to patient inclusion.


Retrospective analysis was undertaken reviewing the records of 183 patients who underwent tumour nephrectomy at the Princess Alexandra Hospital (Queensland, Australia) between June 2013 and December 2015. We identified nine of these patients as being kidney transplant recipients. Of these nine, two had lesions within their allograft kidney. Both patients received conventional transplant nephrectomy.

Case 1

A 55-year-old man underwent graft nephrectomy after a solid mass lesion was detected in his transplanted kidney on ultrasound and confirmed by computed tomographic (CT) scan (Figure 1A-C). The kidney transplant was performed in 1997 following end-stage kidney disease due to focal segmental glomerulosclerosis (18-year functioning graft; estimated glomerular filtration rate [eGFR] prior to surgery was 45 ml/min per 1.73 m2). Immunosuppressive therapeutic regimen prior to surgery included prednisolone (5 mg/day), mycophenolate mofetil (2000 mg/day) and tacrolimus (0.5 mg/day). In the non-neoplastic kidney sections, there were glomerular hypertrophy and focal segmental glomerulosclerosis, with no transplant glomerulopathy. Mild transplant arteriopathy was present, and there was minimal tubular atrophy/interstitial fibrosis (<10% cortex). There was no evidence of rejection. Multiple simple cortical cysts (Figure 2A) and papillary adenomas (<5 mm) were present.

Figure 1

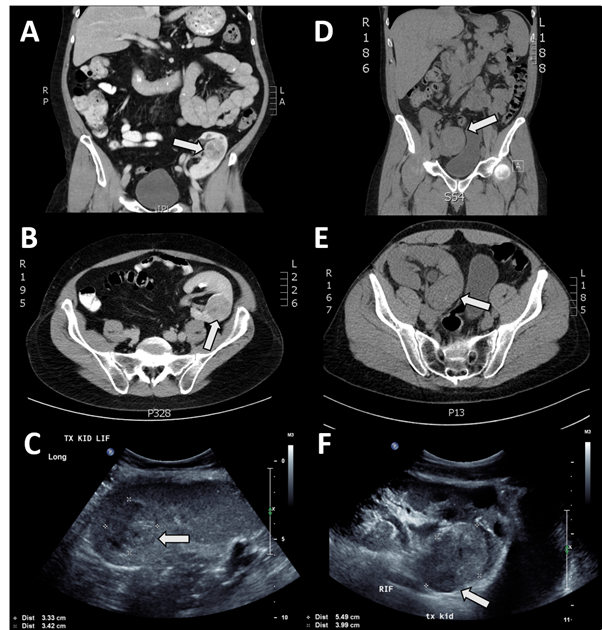

Figure 1. A. Computer tomographic scan (CT) case 1: coronal section showing transplant kidney in left iliac fossa; distinct mass present in upper pole and enhanced with contrast, designated by arrow. B. CT case 1: transverse section showing distinct mass in transplant kidney enhanced with contrast, predominantly posteriorly located. C. Ultrasound case 1: showing distinct mass within kidney. D. CT case 2, coronal section showing transplant kidney in right iliac fossa; indiscriminate mass located in lower pole without contrast enhancement. E. CT case 2, transverse section showing indiscriminate mass in posterior portion of kidney. F. Ultrasound case 2, showing distinct mass in posterior portion of kidney cortex.

Figure 2

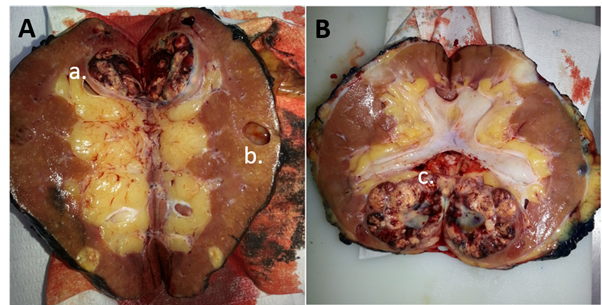

Figure 2. A. Bivalved allograft kidney, case 1: Primary lesion is clear-cell renal cell carcinoma (ccRCC) visible in upper pole (a.). Papillary adenomas not easily visualised. Cortical cyst visible (b.). B. Bivalved allograft kidney, case 2 : primary lesion (ccRCC) visible in lower pole (c.); note invasion into renal sinus fat.

The following lesions were also found in the kidney: a nodular lesion present in the upper pole (35 mm at largest dimension) classified as clear-cell (cc) RCC (WHO/ISUP grade 3); and two additional nodules (8 and 9 mm at largest dimension) were identified in the lower pole, both classified as papillary adenomas. Both of these lesions were initially classified as type 1 papillary RCC (grade 2); however, these lesions were reclassified by a uropathologist as papillary adenomas, based on the World Health Organization 2016 classification of adult renal tumours (lesions are <15 mm at largest dimension) (6). All tumours were confined to the kidney (Figure 3).

Figure 3

Figure 3. Case 1: A and B. Clear-cell renal cell carcinoma, grade 3; high- and low-power fields of the two papillary adenomas are shown in C and D and E and F.

Case 2

A 44-year-old man underwent graft nephrectomy after a solid mass lesion was detected in his transplanted kidney on ultrasound, and confirmed by a CT scan (Figure 1D-F). The transplant was received in 1996 (19-year functioning graft; eGFR prior to surgery was 26 ml/min per 1.73 m2). Histology of the non-neoplastic kidney showed mild parenchymal scarring with some glomerulitis and transplant glomerulopathy present. Moderate transplant arteriopathy and hyaline arteriosclerosis were also present. Indications of active chronic antibody-mediated rejection were present in the microvessels (glomerular and peritubular capillaries) and arteries, as evidenced by C4d immunoperoxidase stain positivity. Multiple cortical cysts were present.

A nodular lesion present in the lower pole (50 mm at largest dimension) was classified as ccRCC (grade 4), with focal rhabdoid differentiation (Figure 4). This tumour showed some infiltration of renal sinus fat (Figure 2B). A second lesion in the lower pole (37 mm at largest dimension) was classified as a cc tubulopapillary RCC (low grade; Figure 5A-C). A third lesion in the lower pole (7 mm at largest dimension) was classified as multilocular cystic renal neoplasm of low malignant potential (Figure 5D-F). A 7-mm lesion in the upper pole was classified as mucinous tubular and spindle cell carcinoma (Figure 6). These tumours were limited to the kidney.

Figure 4

Figure 4. Case 2: A and B. Low-power fields showing clear cell renal cell carcinoma. C. High-power field showing rhabdoid differentiation. D. High-power field showing features consistent with a grade of 4.

Figure 5

Figure 5. Case 2: A-C. Clear-cell tubulopapillary renal cell carcinoma. D-F. Multilocular cystic renal neoplasm of low malignant potential.

Figure 6

Figure 6. Case 2: A. Low-power and (B) high-power fields showing mucinous tubular and spindle cell carcinoma.


Here, we report two cases of multifocal synchronous neoplasms in allograft kidneys, with variable histological concordance. We found three similar case studies in the literature (7–9), and a case series identified a further 12 cases of multifocal RCC in allograft kidneys (10). Malignancies arising in allograft kidneys have three primary mechanisms of pathogenesis: (i) de novo malignancy, (ii) recurrence of previous malignancy (i.e. RCC) or (iii) transmission of malignancy from donor (11). In the absence of previous RCC history and considering the long life of both grafts, it can be presumed that both cases exhibit de novo malignancy (10). Although multifocal neoplasms in allograft kidneys are sparsely reported, a recent study of 2,569 nephrectomy patients revealed a 3% prevalence of ipsilateral multifocal synchronous RCC in the general population, with only 58.8% histological concordance (12). This indicates that with multifocal lesions, it is not uncommon for multiple histological subtypes to be found.

The predominant mass in both cases was ccRCC (summarised in Table 1). Although there is dispute as to whether multifocal ccRCC is the result of related or independent events (13, 14), there is no indication that they give rise to other subtypes. Considering case 1, it has been reported that multifocal papillary RCC generally arise independently (15). This tends to indicate that the multiple papillary adenomas probably arose from independent tumorigenic events, especially considering that multifocal papillary adenomas are not uncommon and often are associated with multifocal papillary RCC (15).

Table 1. Histological Diagnosis of Lesions


Size (mm)

Case 1

 Clear cell RCC


 Papillary adenoma


 Papillary adenoma


Case 2

 Clear-cell RCC


 Clear-cell tubulopapillary RCC


 Multilocular cystic renal neoplasm


 Mucinous tubular and spindle cell carcinoma


Considering case 2, cc tubulopapillary RCC by definition do not exhibit 3p deletion, chromosome 7 or 17 polysomy, or VHL mutations, as is generally found in ccRCC (16). Based on this, polyclonal origin of these lesions is extremely likely. Of the three previous case studies of multifocal RCC in allografts, two showed discordant histological subtypes. The first case was of a high-grade ccRCC and papillary RCC (7), and the second showed 29 separate lesions with multiple classifications, predominantly papillary RCC or adenoma (9).

Evaluation of the cases presented in this report, and previously reported, provides some evidence that multiple tumorigenic mutations may lead to multifocal synchronous RCC occurrence in kidney allografts. Although immunosuppression presents as a common factor, it is not possible to determine whether it predisposes to multiple mutations, as causes are almost always multifactorial. Additional research to determine the relationship between immunosuppression and tumorigenic events is required.

There are important connotations regarding methods to diagnose allograft tumours, and further support for ongoing tumour screening in kidney transplant recipients with long graft life. First, as identified by Simhan et al. (12), if a single region of an intrarenal mass is biopsied and found to be of low malignant potential, there is no guarantee that there is not a concomitant high-grade tumour also present. The importance of thorough and appropriate radiological examination is also demonstrated because if multifocal lesions are present, there is a possibility that innocuous masses may be overlooked with subsequent progression (especially relevant in the context of nephron-sparing surgery). Difficulty in this regard can be compounded as radiographic contrast is often contraindicated in patients with diminishing graft kidney function (as the case in Figure 1D-E). Although there is not enough evidence to justify adjustments of diagnostic protocols at present, we do highlight the importance of thorough and accurate radiographic/histologic evaluation of patients with suspected kidney allograft neoplasia.


Overall, we report two cases of multifocal allograft neoplasms with low histological concordance. Although our findings are limited by the lack of genetic analysis of tumour tissue, based on the available literature, it appears that they are the result of independent tumorigenic mutations as opposed to intrarenal metastatic spread. Although there is not enough evidence to implicate immunosuppression as the sole causative factor, further investigation into this link is warranted. Our findings highlight the importance of effective and thorough radiologic and histologic analyses of tumours present in kidney allografts.

Competing interests

The authors declare no potential conflicts of interest with respect to research, authorship and/or publication of this article.


1. Agraharkar ML, Cinclair RD, Kuo YF, Daller JA, Shahinian VB. Risk of malignancy with long-term immunosuppression in renal transplant recipients. Kidney Int. 2004;66(1):383-9.

2. Kasiske BL, Snyder JJ, Gilbertson DT, Wang C. Cancer after kidney transplantation in the United States. Am J Transplant. 2004;4(6):905-13.

3. Sorbellini M, Bratslavsky G. Decreasing the indications for radical nephrectomy: a study of multifocal renal cell carcinoma. Front Oncol. 2012;2:84. http://dx.doi.org/10.3389/fonc.2012.00084

4. Crispen PL, Lohse CM, Blute ML. Multifocal renal cell carcinoma: clinicopathologic features and outcomes for tumors </=4 cm. Adv Urol. 2008:518091. http://dx.doi.org/10.1155/2008/518091

5. Hevia V, Gomez V, Diez Nicolas V, Alvarez S, Gomez Del Canizo C, Galeano C, et al. Development of urologic de novo malignancies after renal transplantation. Transplant Proc. 2014;46(1):170-5. http://dx.doi.org/10.1016/j.transproceed.2013.12.004

6. Hes O, Compérat EM, Rioux-Leclercq N, Kuroda N. The 2012 ISUP Vancouver and 2016 WHO classification of adult renal tumors: changes for common renal tumors. Diagnostic Histopathol. 2016;22(2):41-6. http://dx.doi.org/10.1016/j.mpdhp.2016.01.003

7. Alexander MP, Farag YM, Mittal BV, Rennke HG, Tullius SG, Singh AK. De novo multifocal renal cell carcinoma in the renal allograft. Kidney Int. 2009;75(1):111-4. http://dx.doi.org/10.1038/ki.2008.228

8. Aguilera Tubet C, Gutierrez Banos JL, Del Valle Schaan JI, Martin Garcia B, Ballestero Diego R, Zubillaga Guerrero S. Multifocal renal cell carcinoma on renal allograft. Actas Urol Esp. 2007;31(5):553-5.

9. DeLong MJ, Schmitt D, Scott KM, Ramakumar S, Lien YH. Multicentric papillary renal carcinoma in renal allograft. Am J Kidney Dis. 2003;42(2):381-4.

10. Tillou X, Doerfler A, Collon S, Kleinclauss F, Patard JJ, Badet L, et al. De novo kidney graft tumors: results from a multicentric retrospective national study. Am J Transplant. 2012;12(12):3308-15. http://dx.doi.org/10.1111/j.1600-6143.2012.04248.x

11. Morath C, Mueller M, Goldschmidt H, Schwenger V, Opelz G, Zeier M. Malignancy in renal transplantation. J Am Soc Nephrol. 2004;15(6):1582-8.

12. Simhan J, Canter DJ, Sterious SN, Smaldone MC, Tsai KJ, Li T, et al. Pathological concordance and surgical outcomes of sporadic synchronous unilateral multifocal renal masses treated with partial nephrectomy. J Urol. 2013;189(1):43-7. http://dx.doi.org/10.1016/j.juro.2012.08.092

13. Cheng L, MacLennan GT, Zhang S, Wang M, Zhou M, Tan PH, et al. Evidence for polyclonal origin of multifocal clear cell renal cell carcinoma. Clin Cancer Res. 2008;14(24):8087-93. http://dx.doi.org/10.1158/1078-0432.CCR-08-1494

14. Junker K, Thrum K, Schlichter A, Muller G, Hindermann W, Schubert J. Clonal origin of multifocal renal cell carcinoma as determined by microsatellite analysis. The J Urol. 2002;168(6):2632-6.

15. Jones TD, Eble JN, Wang M, MacLennan GT, Delahunt B, Brunelli M, et al. Molecular genetic evidence for the independent origin of multifocal papillary tumors in patients with papillary renal cell carcinomas. Clin Cancer Res. 2005;11(20):7226-33.

16. Kuroda N, Ohe C, Kawakami F, Mikami S, Furuya M, Matsuura K, et al. Clear cell papillary renal cell carcinoma: a review. Int J Clin Exp Pathol. 2014;7(11):7312-8.
